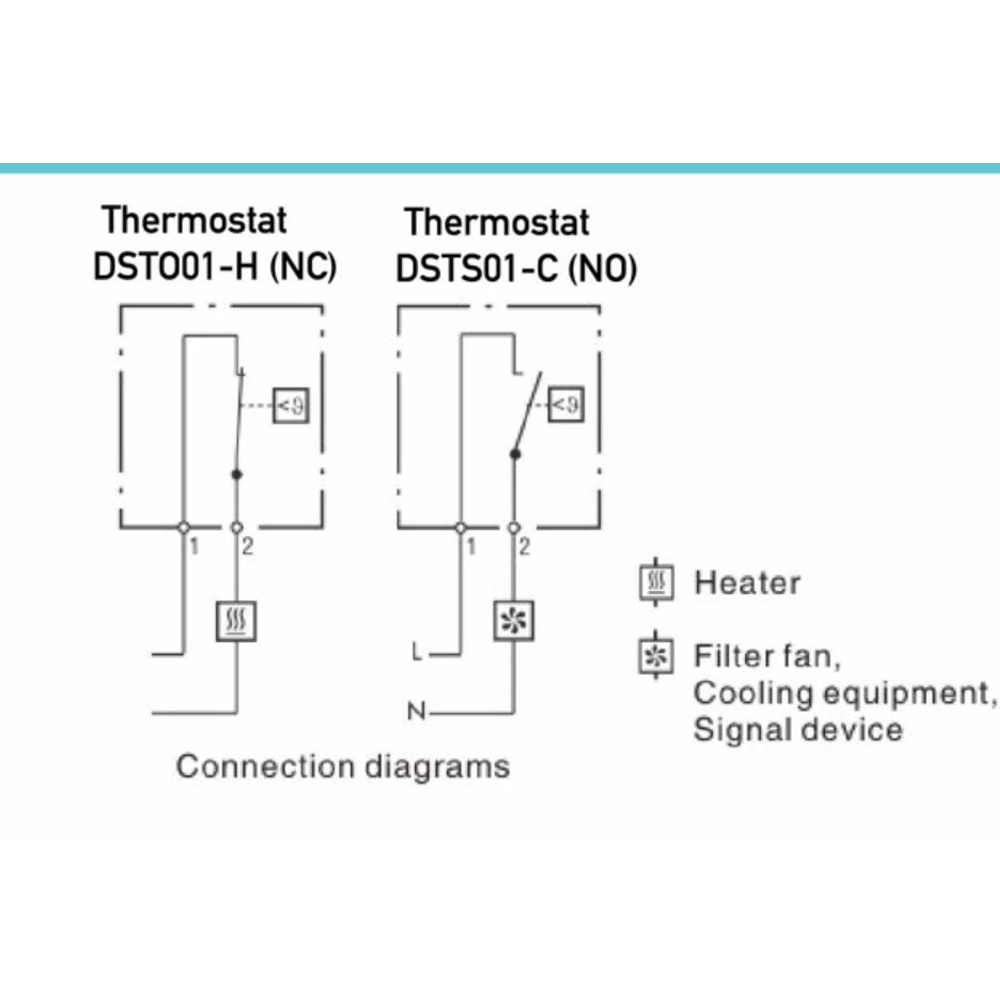

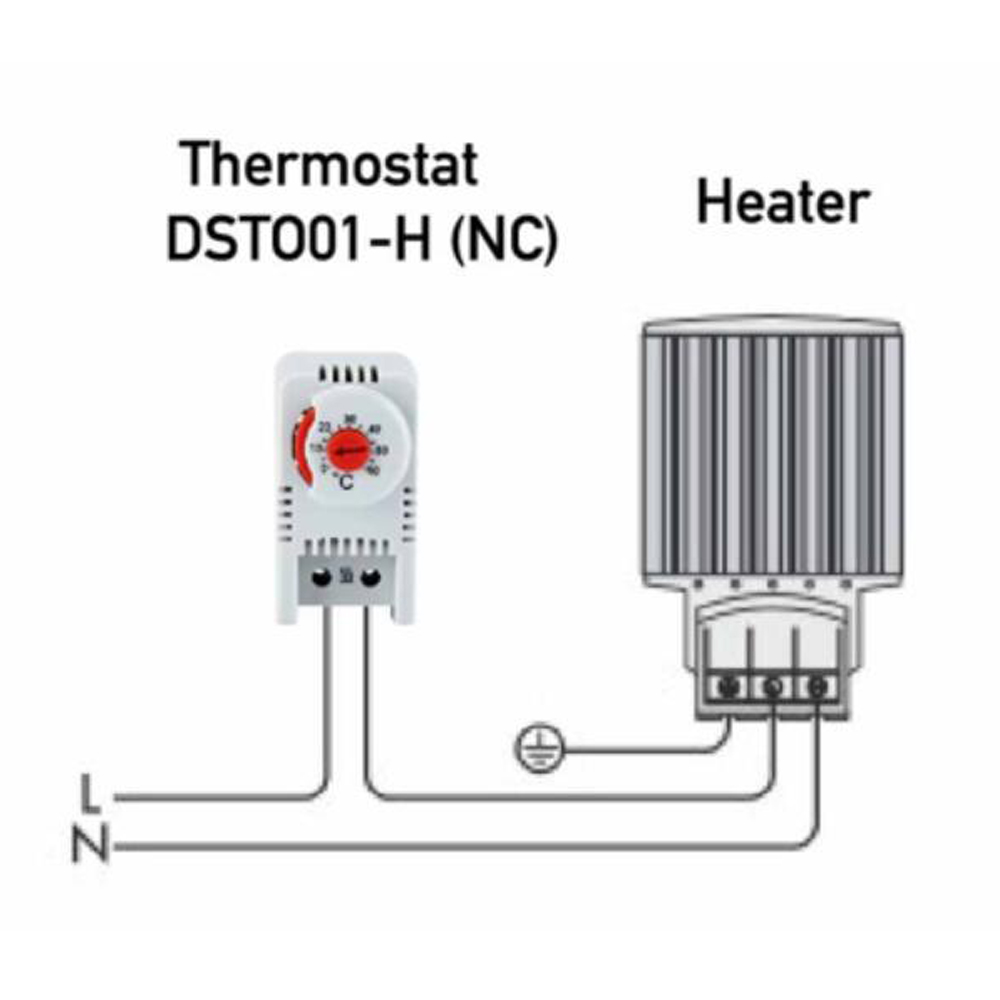

DSTO01-H:When the temperature reaches the set value, open circuit.

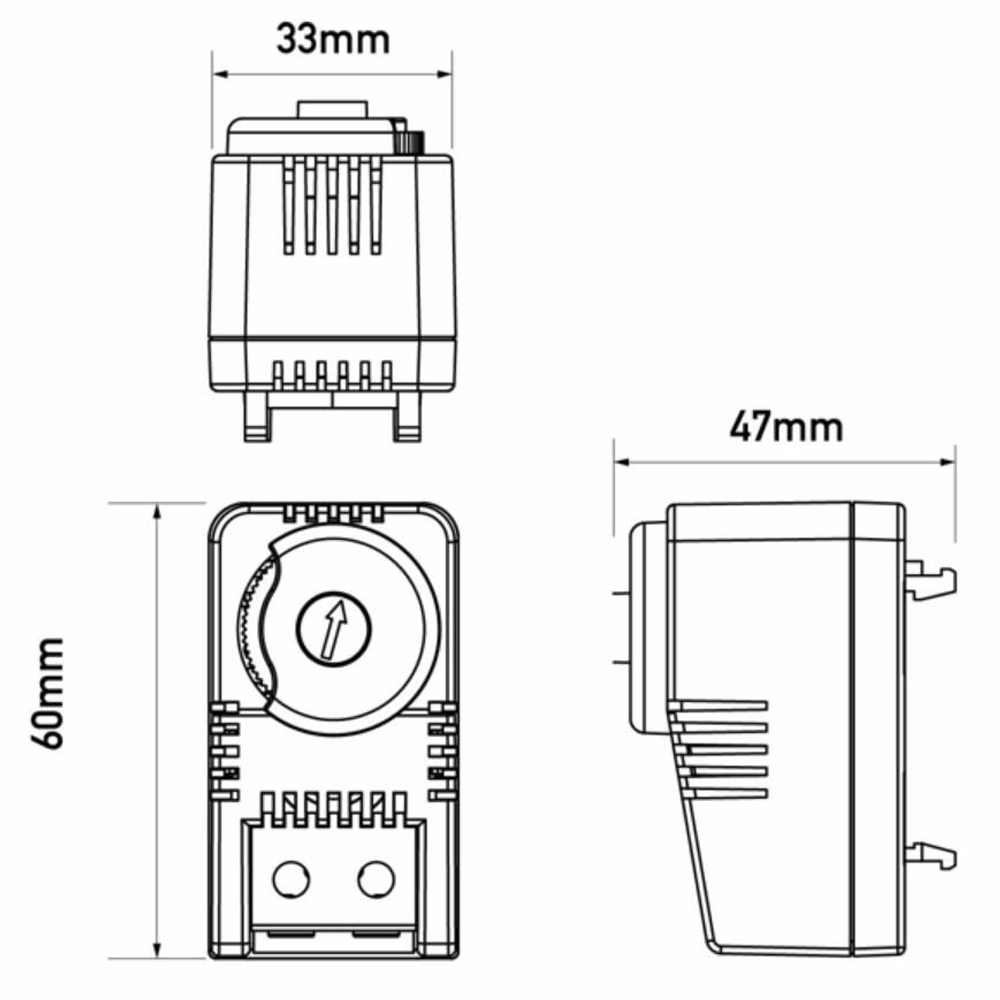

Dimensions:60x33x47mm

Weight:44g/pcs

Fitting position:variable

Operation/storage temperature:-20℃ to 80℃

Protection type:IP20

Carton size:33.5x20x22cm 100pcs/carton

Switch temperature difference:7K(+4K tolerance)

Sensor element:Thermostatic bimetal

Contact type:Snap-action

Contact resistance:<m ohm(Incidental connection line)

Service life:>100000 cycles

Aaax.Switching capacity:250V AC 10(2)A,120V AC 15(2)A,30W DC at 24V DC to 72V DC

Connection:2-pole terminal clamping torque 0.5Nm max:Rigid wire 2.5rrirr12r stranded wire (with end ferrule)1.5rrin12

Casing:Plastic according to UL94 V-0 light grey

Installation:35mm DIN Installation guide
